Combat System Technology

Anti Drone Solutions

In response to the evolving threat posed by hostile drones to critical infrastructure and national security, ADSL has developed a cutting-edge, multi-layered Anti-Drone Solutions engineered for rapid detection, precise tracking, and reliable neutralization of unauthorized aerial threats.

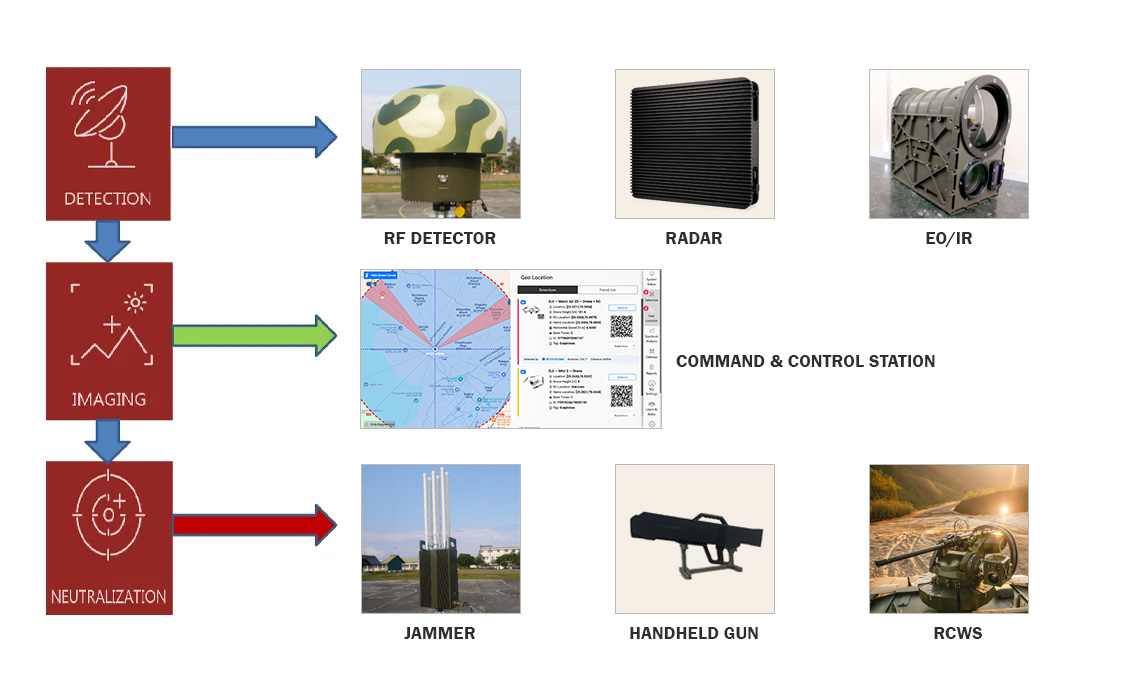

This indigenous solution integrates advanced radar technology, RF jamming, electro-optical/infrared (EO/IR) surveillance, interceptor drones, and hard-kill mechanisms—offering a comprehensive protective shield for strategic assets, border area and high-value zones. ADSL offer below mentioned comprehensive range of counter-drone solutions :

Hand Held Counter Drone System (HCDS)
Vehicle Mounted Anti Drone System (VMADS)
Infra-protection Anti Drone System (IPADS)
Man-Portable Anti-Drone System (MPADS)
Net-Catcher Anti-Drone System (NCADS)

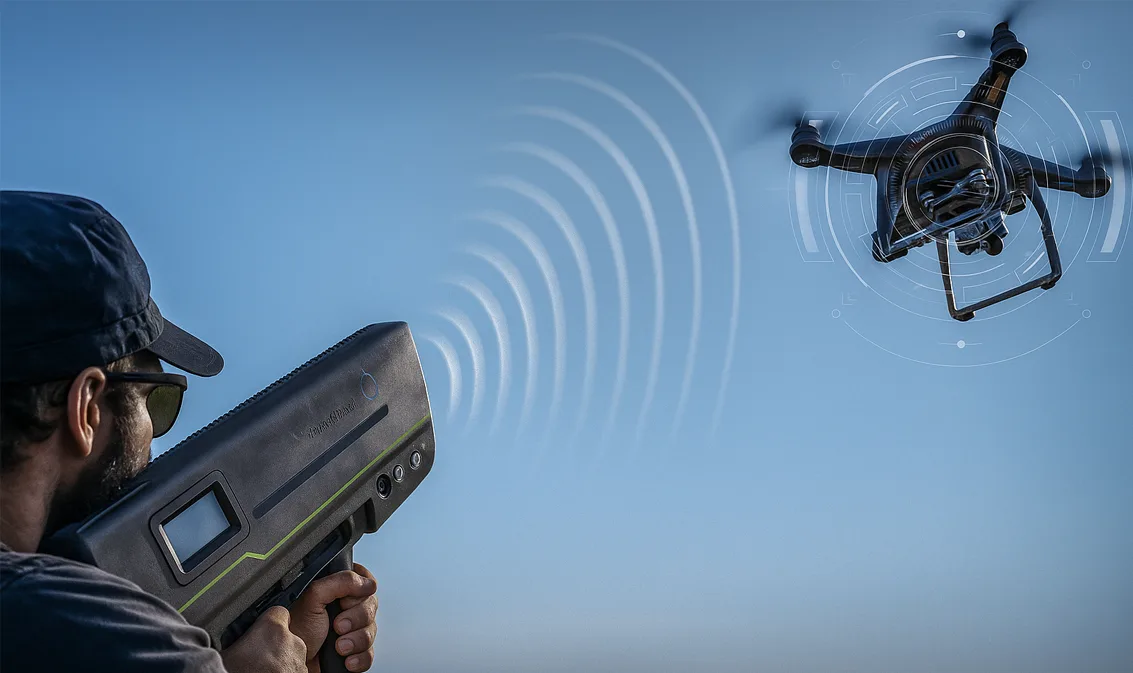

Hand Held Counter Drone System (HCDS)

System Overview

Compact, portable, one man carry system suitable for field operation
Quick neutralization of unauthorized or hostile drones
Intercept and disable drones at short to medium ranges without physical destruction
Effective solution in tactical operations, border area protection, and VIP security

Key Feature

Multi-Band RF Jamming with frequencies 400 MHz - 5.8 GHz
Quick Deployment and becomes operational within seconds
Shoulder-fired or rifle-style form factor with trigger operation
Operational range of up to 1–2 km (line of sight)
Denies GPS/GLONASS/Galileo reception to targeted drones, causing disorientation or auto-landing
Built-in diagnostic display or LED indicators for system health and battery status
Weight under 6 kg for single-operator use

Man-portable Anti-drone System (MPADS)

System Overview

Lightweight, modular, and soldier-friendly solution
The system comprises a Tripod-mounted RF detector with Handheld Gun or Tripod-mounted jammer
Designed to detect, track, and neutralize hostile drones in tactical environments
Low signature, rapid deployment, and reliable performance in diverse terrains and weather
Ideal for jungle warfare, urban combat, and high-risk operations

Mission Suitability

Counter-insurgency operations
Jungle and urban patrolling
Convoy and base protection
Tactical ambush support
Terrorist hideout raids

The MPADS system is combination of two sub-systems

Tripod-mounted Drone Detector Unit
Hand-Held Directional Jammer Unit

Key Feature

Tripod-mounted Drone Detector Unit

360° RF Detection with signal classification (2.4 GHz, 5.8 GHz, GNSS, custom C2 links)
EO/IR camera (optional) for visual confirmation and passive tracking
Detection range: upto 7 km, as per requirement
Low SWaP (Size, Weight, and Power) with silent operation
Real-time alerts via audio & Visuals on C2 display
Encrypted communication with jammer unit and central command if needed

Key Feature

Hand-Held Directional Jammer Unit

Multi-band jamming eg. GNSS, 2.4 GHz, 5.8 GHz, and custom RF bands
Directional high-gain antenna for precise target disruption
Effective jamming range up to 1.5 - 2 Kms (LoS)
Trigger-based operation with safety interlock and mode selector (disruption / disable)
Battery powered (field swappable) with >1 hours runtime
Ruggedized for single-person use in combat conditions

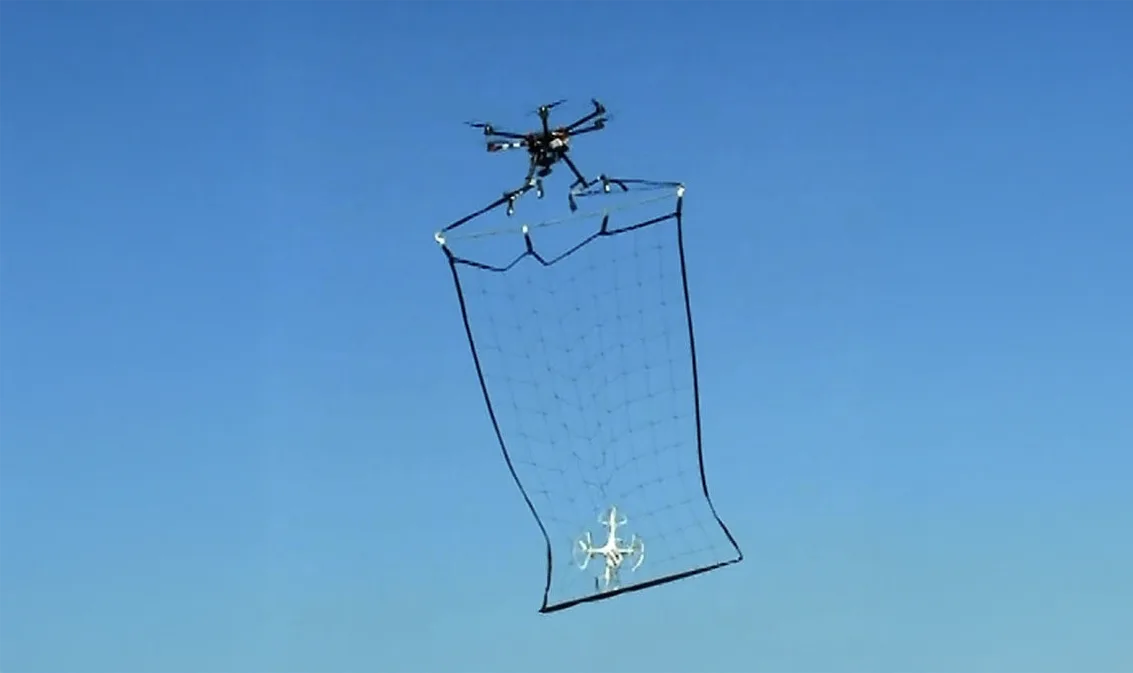

Net-catcher Anti-drone System (NCADS)

System Overview

An advanced, drone-mounted interception solution designed to capture hostile drones intact using a net-firing mechanism
Deploying a net to entangle, disable, or tow the target drone to a secure location
Intercept and disable drones at visual ranges without physical destruction
Allows the safe recovery of enemy UAVs for forensic investigation, data extraction, or disposal

Key Feature

Multi-rotor UAV with EO/IR camera for visual target acquisition capacity and net-launcher system
AI-assisted autonomous detection and target tracking
Drone operational range of up to 2-3 km (line of sight)
Fires net to bring drone down by entangling rotors
Effective range: 5–15 meters from target drone
Capture-and-tow target drone to base

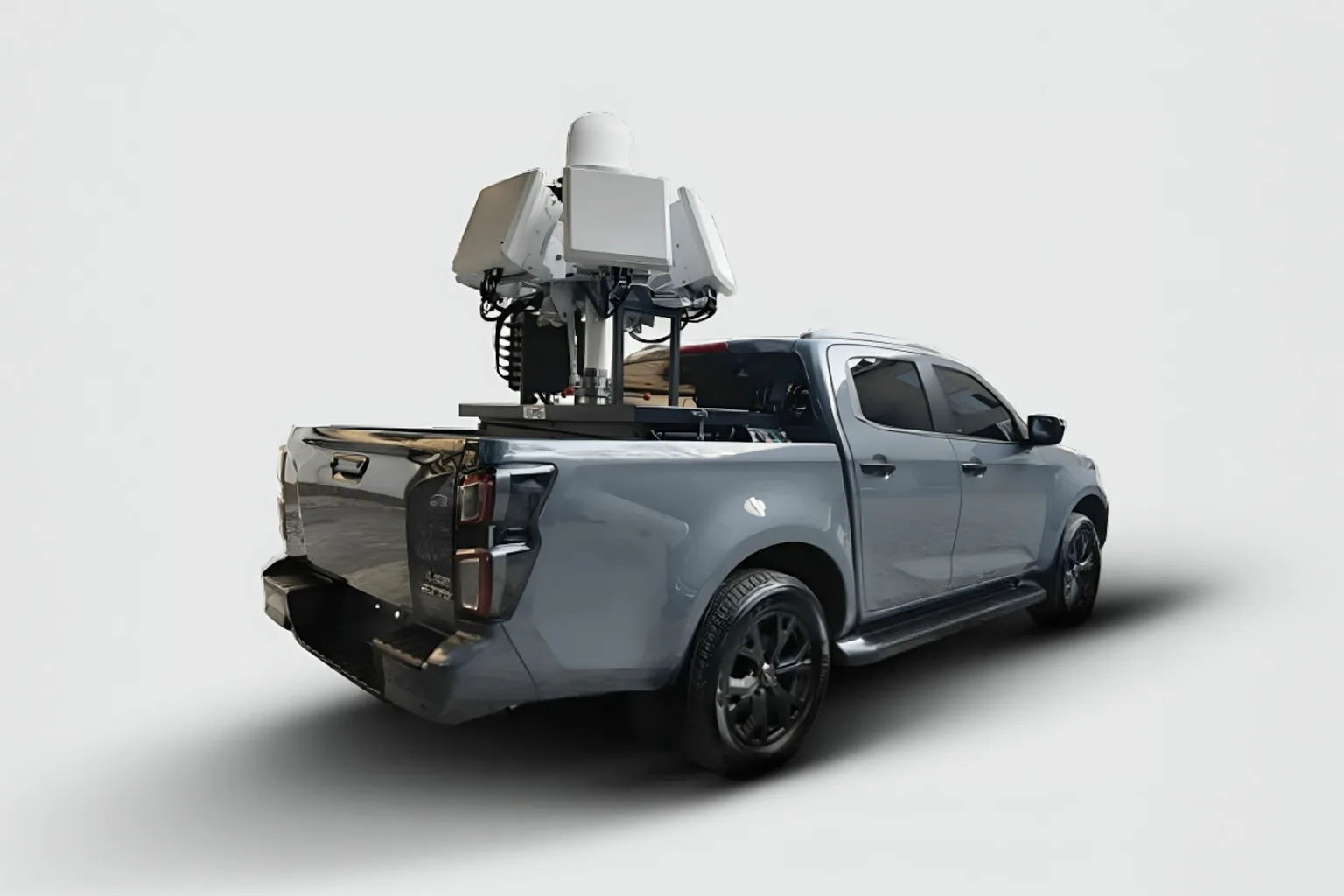

Vehicle Mounted Anti Drone System

System Overview

Cutting-edge mobile platform designed to detect, track, and neutralize unmanned aerial vehicles (UAVs) and drones
The system is integrated with radar, sight system, electronic warfare, and directed energy weapons to provide comprehensive protection against drone threats

Key Feature

Mobility and Rapid Deployment
Automatic Detection and Classification
Automatic Neutralisation
Capability to neutralise drone swarms
Suitable to quickly deploy at airport, field operation area and civilian populations to protect from potential drone attacks

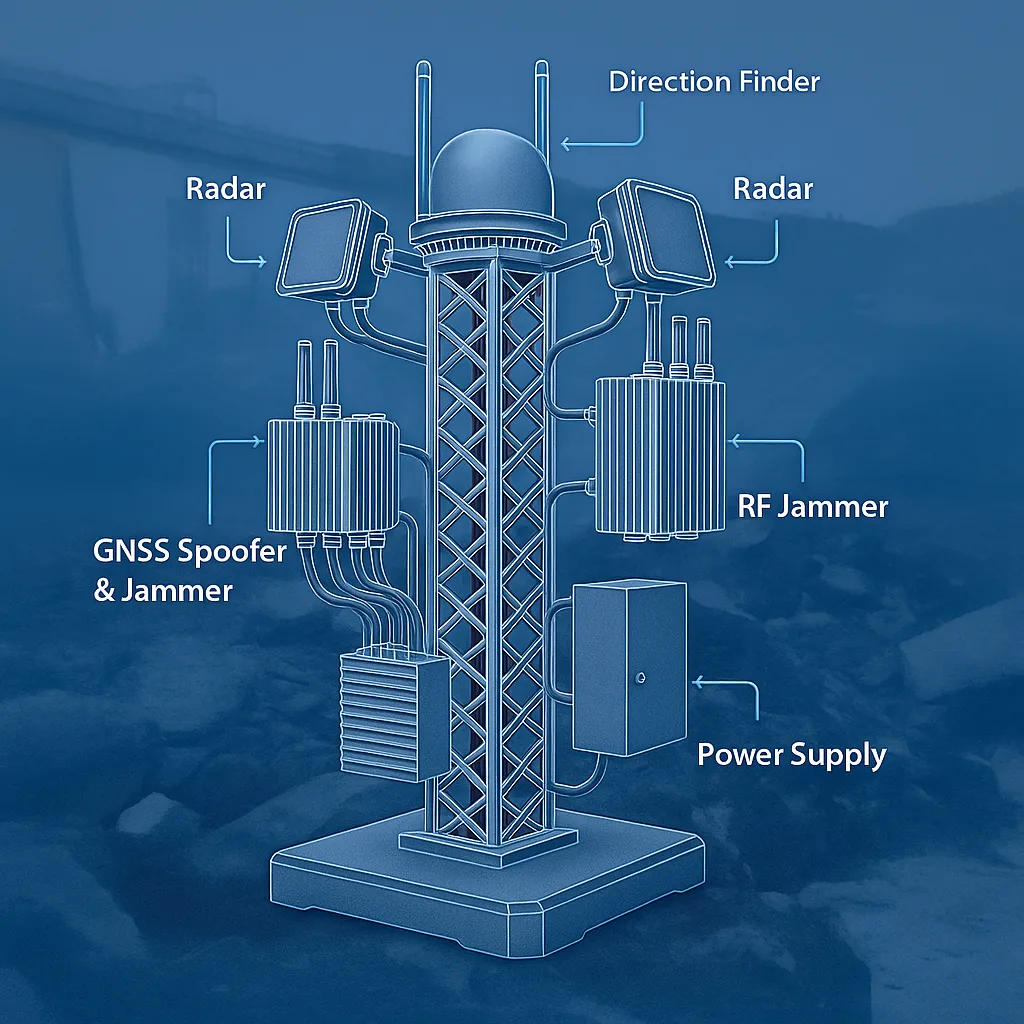

Infrastructure Protection Anti Drone System (IPADS)

System Overview

Integrated, multi-layered solution designed to detect, identify, track, and neutralize unauthorized drones or aerial threats near critical infrastructure
Autonomous aerial surveillance and rapid response solution against physical intrusion, sabotage, and aerial threats
Provides 24/7 perimeter monitoring, anomaly detection, and real-time threat response
Equipped with advanced sensors, AI-driven analytics, and optional deterrence modules
Designed to reduce human dependency and accelerate reaction time in the event of a security breach

Key Features

3D Surveillance Radar

360° azimuth coverage
Detection range: up to 5–15 km (customizable)
Tracks multiple targets simultaneously

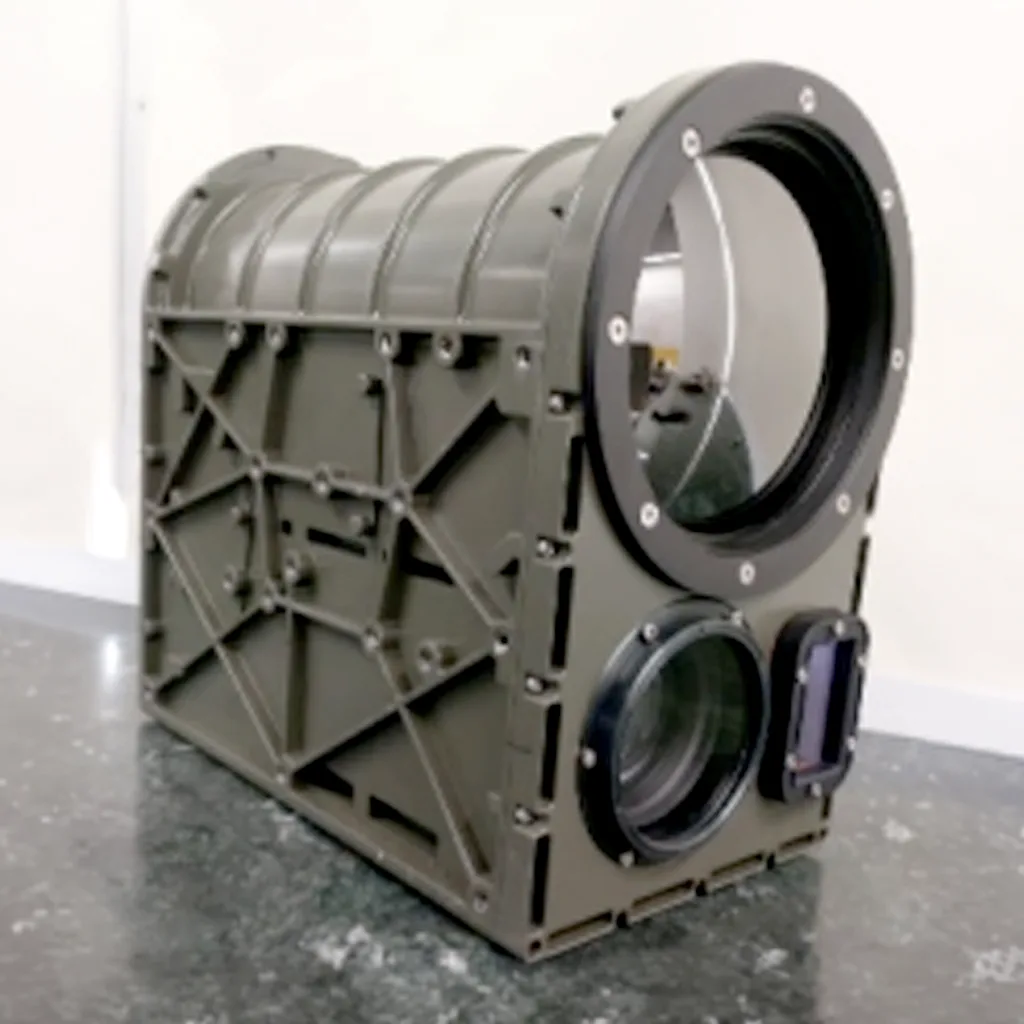

Electro-Optical/Infrared (EO/IR) Sight System

Visual identification and Auto tracking of drone threats
Day/Night vision capability
Laser range finder (optional)

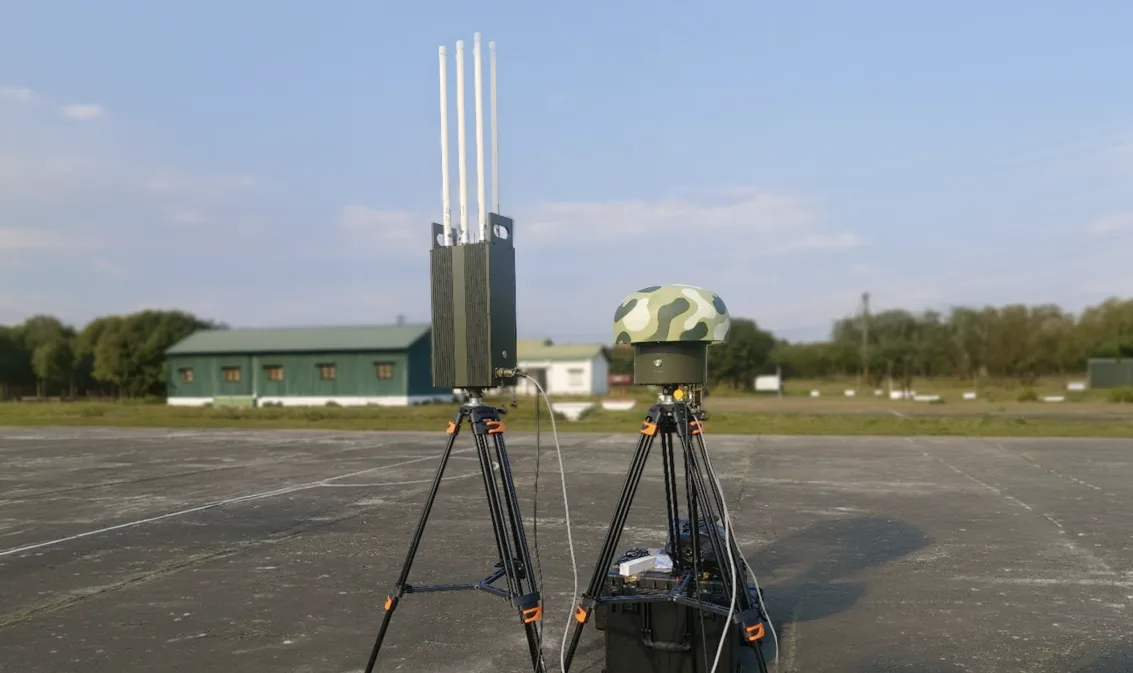

RF Detection and Jamming Module

Detects drone communication frequencies
Jams GNSS and RF links to disable drone control
Disrupts drone-to-operator communication

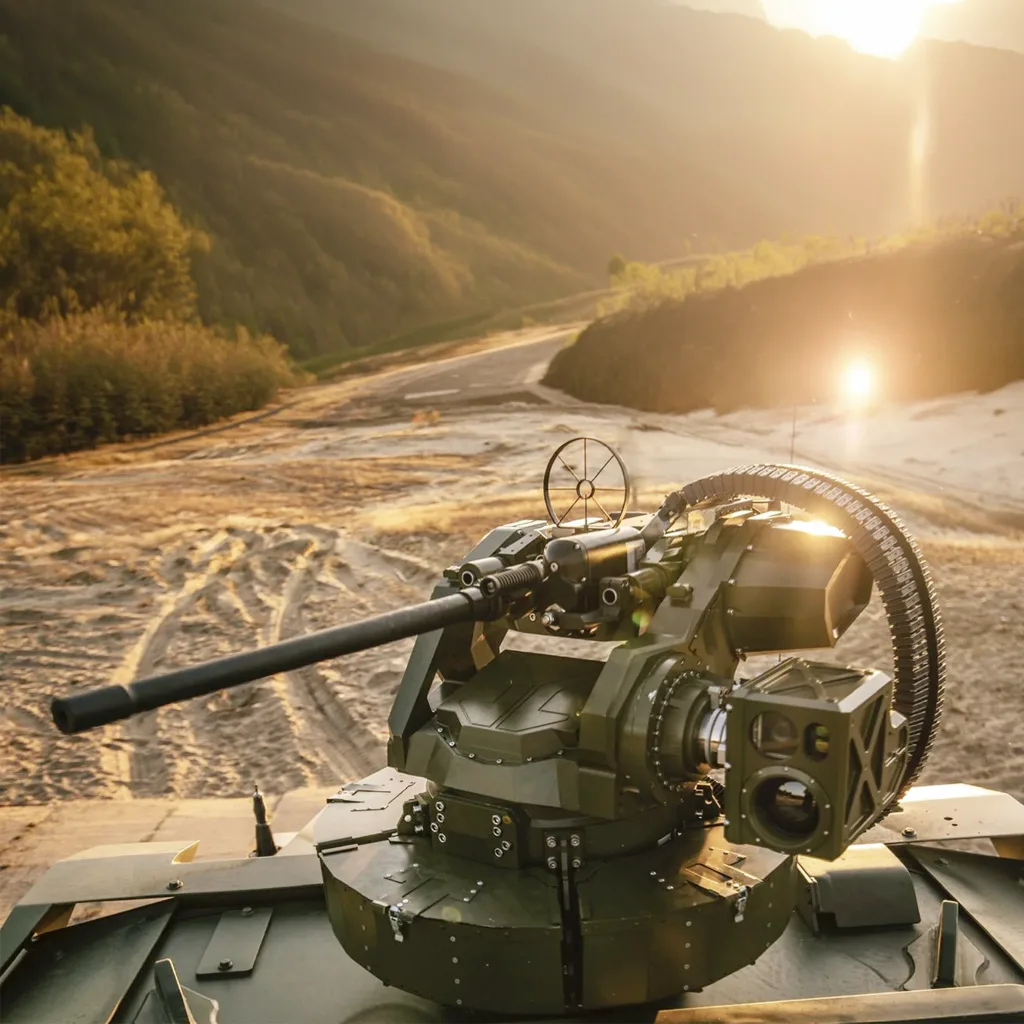

Hard Kill System

Neutralization of hostile drones through Kinetic Disrupts
Net-Gun Launcher
Interceptor Drone

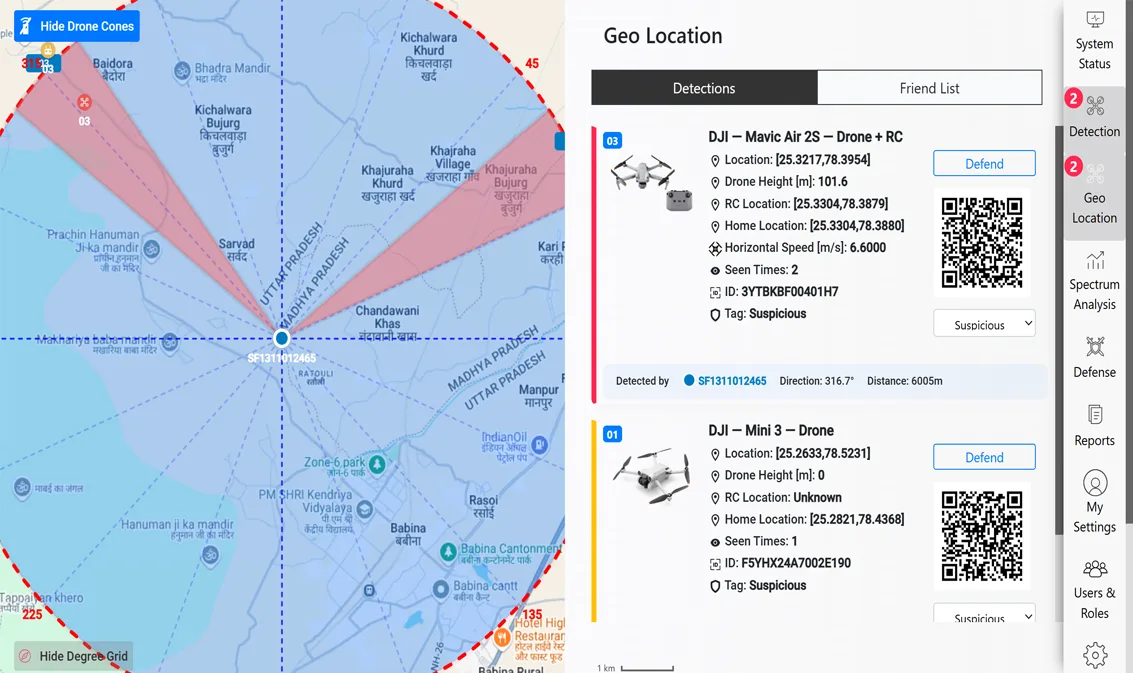

Command & Control (C2) Unit

Centralized processing and coordination of threat data and system actions
