Aerial Delivery System
Elevator

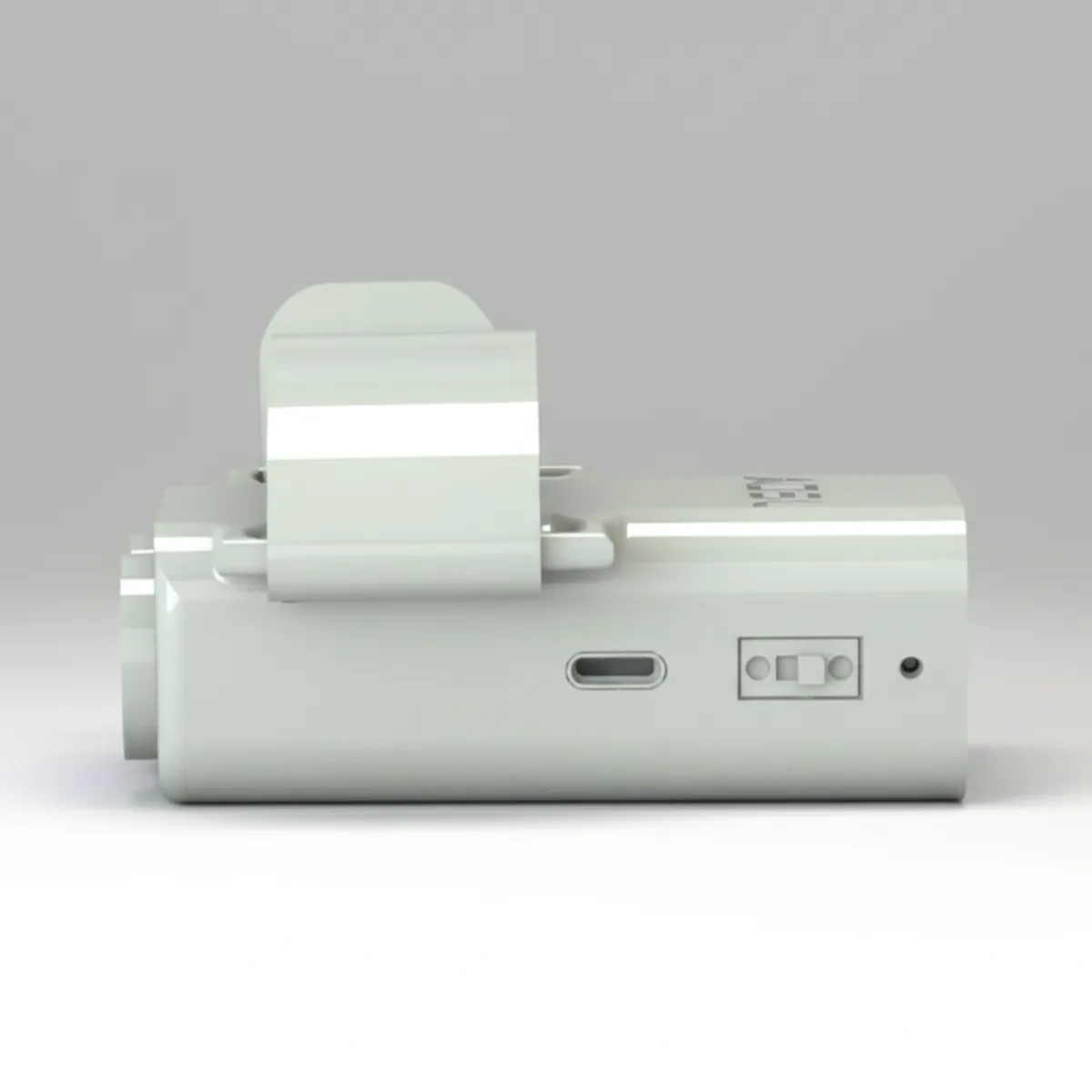

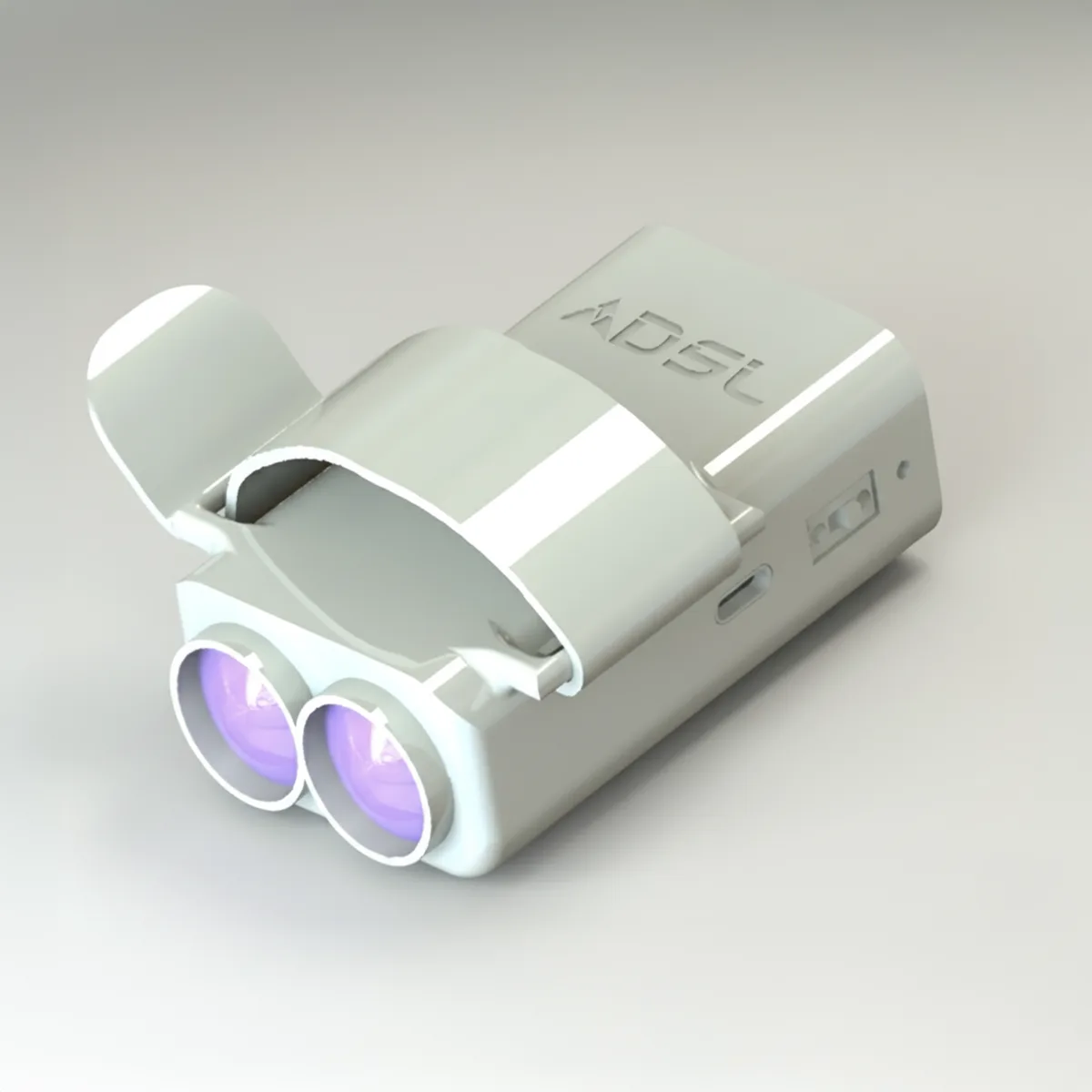

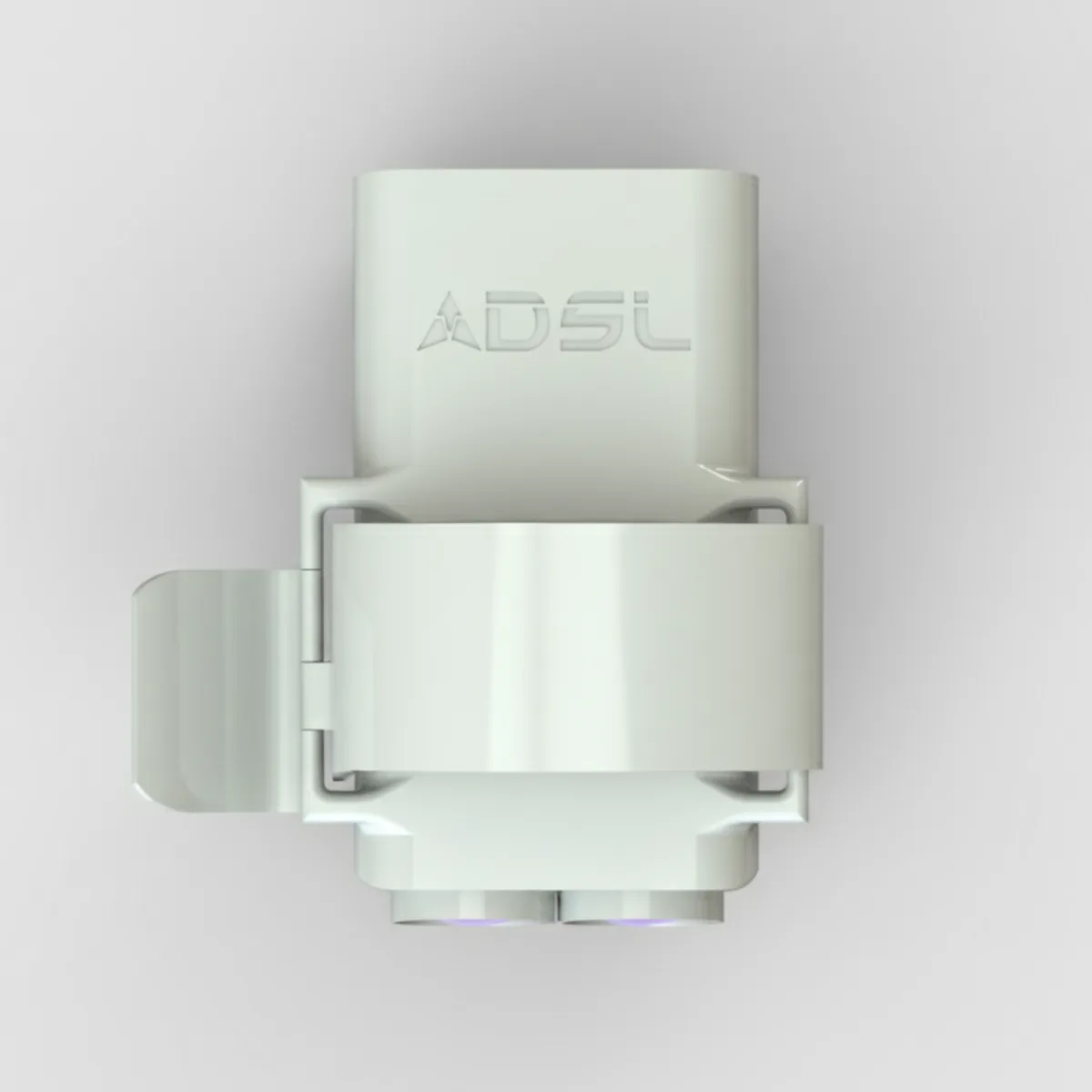

The Elevator is a wearable device designed for personnel descending with a parachute after jumping from an aircraft. It is strapped to the ankle, just below the knee, and features a Bluetooth-connected earpiece that provides real-time audio updates on the user's altitude above ground level. This makes it especially valuable during night jumps, offering enhanced situational awareness. Compact and easy to use, the Elevator is a practical and effective tool for armed forces personnel during airborne operations.
Purpose
A wearable device designed for personnel descending with a parachute after jumping from an aircraft.
Specifications
-
Measuring Range from 0.2m to 200m
-
Scan rate up to 20000 samples per second
-
Operating Range -10°C to 50°C
-
Bluetooth V 5.0
-
Audio Range up to 20 ft
-
Power requirements: 3.3 to 6.5 VDC
-
Supports I²C and SPI communications
Features
-
High resolution: 200 Meter
-
Multiple return signals, signal strength, noise measurement etc
-
49 to 20,000 readings per second (configurable)
-
Eye safe laser emission Class 1M
-
Open frame, no IP rating
-
Can be mounted in a downward facing orientation
